XoT-S1
The Lock as hardware
The XoT-S1 is a compact hardware platform built to run XoT. The software comes pre-installed. Connect power and network, enrol it in your XMS, and it is ready to use.
The hardware
Compact, rugged and made in Sweden

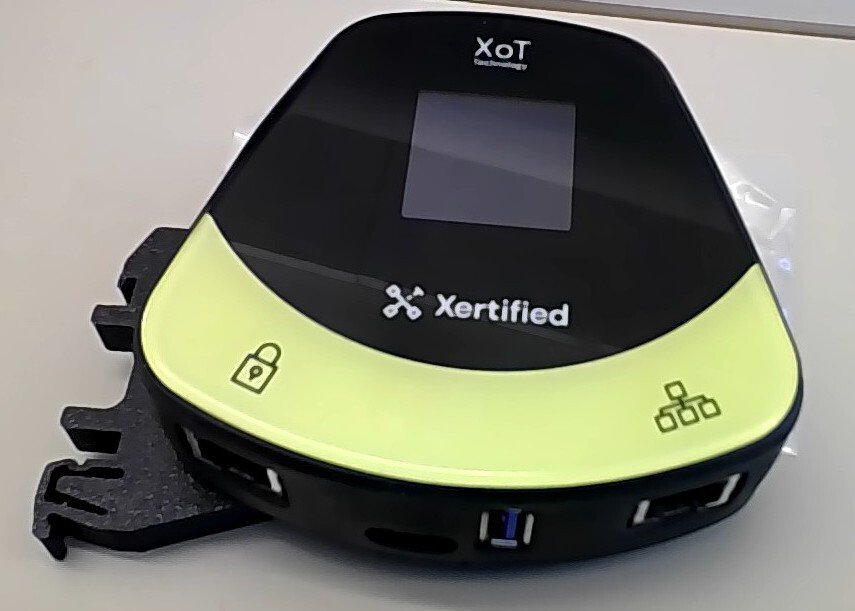

The XoT-S1 has two network ports and mounts on a DIN rail. It has no moving parts. It is operational from −28 to 75 °C.
Specifications
Technical data
| Property | Value |
|---|---|
| Dimensions | 92 × 98 × 30 mm |
| Weight | 120 g |
| Network | 2 × Ethernet 10/100/1000 Mbit/s, auto-sensing |
| Power | USB-C, power only. 5 W normal load, 10 W maximum |
| USB-A | For peripherals. Disabled by default |
| Mounting | DIN-rail bracket |
| Operating temperature | −28 to 75 °C |
| Recommended ambient temperature | 0 to 50 °C |
| Network latency | Min 3.19 ms, average 6.27 ms, max 42.8 ms |
| Cold boot | Under 50 seconds |
| Reboot | Under 33 seconds |
| Firmware upgrade | Under 2.5 minutes |
Size and mounting
Small and easy to mount
Fits in a hand

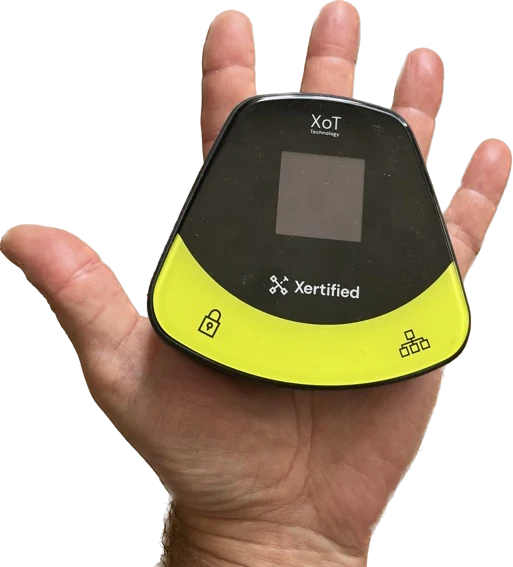

The XoT-S1 weighs 120 grams and measures 92 × 98 × 30 mm.
Mounts on a DIN rail

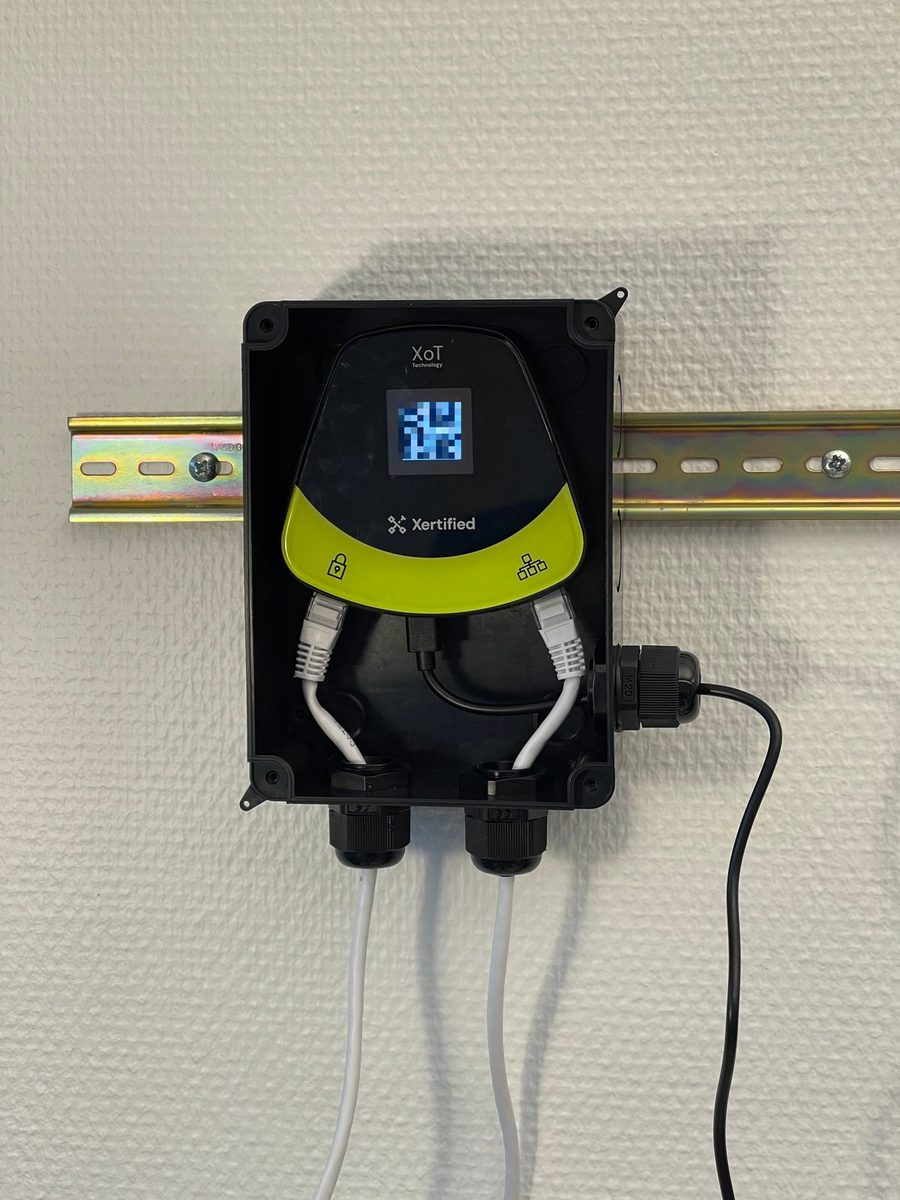

The XoT-S1 can also be mounted in an enclosure on a DIN rail.
Getting started
Ready within minutes
- Connect power and network.
- Scan the QR code on the XoT-S1. It takes you to an enrolment address.
- Log in to the XMS. Name the device and approve it.
- The XMS sends a certificate and settings to the device. The settings are encrypted.
- The Lock is ready. You can now create policies for it in the XMS.
Other platforms
Or install the software yourself
The Lock software also runs on any 64-bit x86 or ARM64 system, on bare metal or as a virtual machine. In that case the Lock is enrolled with a command instead of a QR code.
Want to try the XoT-S1?
Tell us which machine you want to protect. We will help you get started.
